AVERY DENNISON NEO NOIR CUTTING EDGE PPF - BLACK PAINT PROTECTION FILM - MADE POSSIBLE!

Avery Dennison neo™ Cutting Edge Paint Protection Films

Made Possible

Be inspired by a new wave of wrap and design artistry.

Introducing neo™, Avery Dennison's new innovative hybrid wrap and paint protection film line.

The neo line of films are so bold, the possibilities of your imagination and creativity are endless.

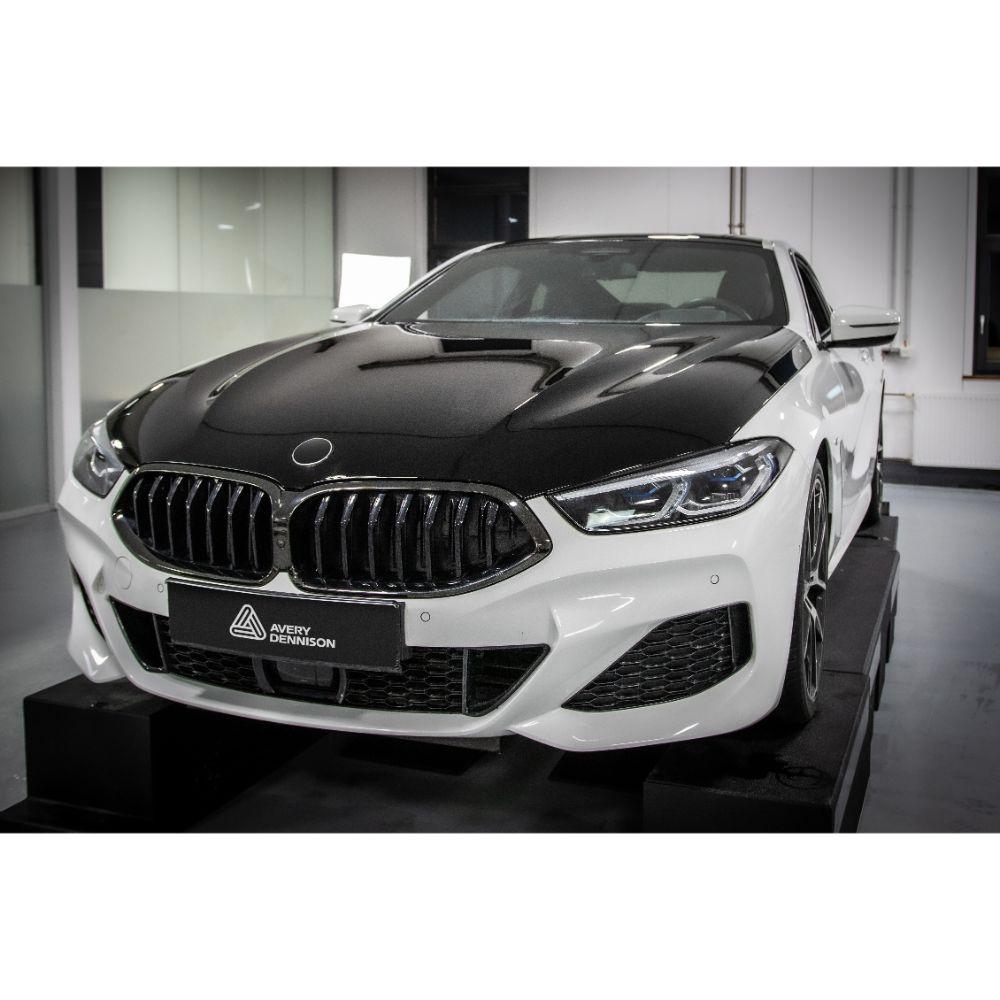

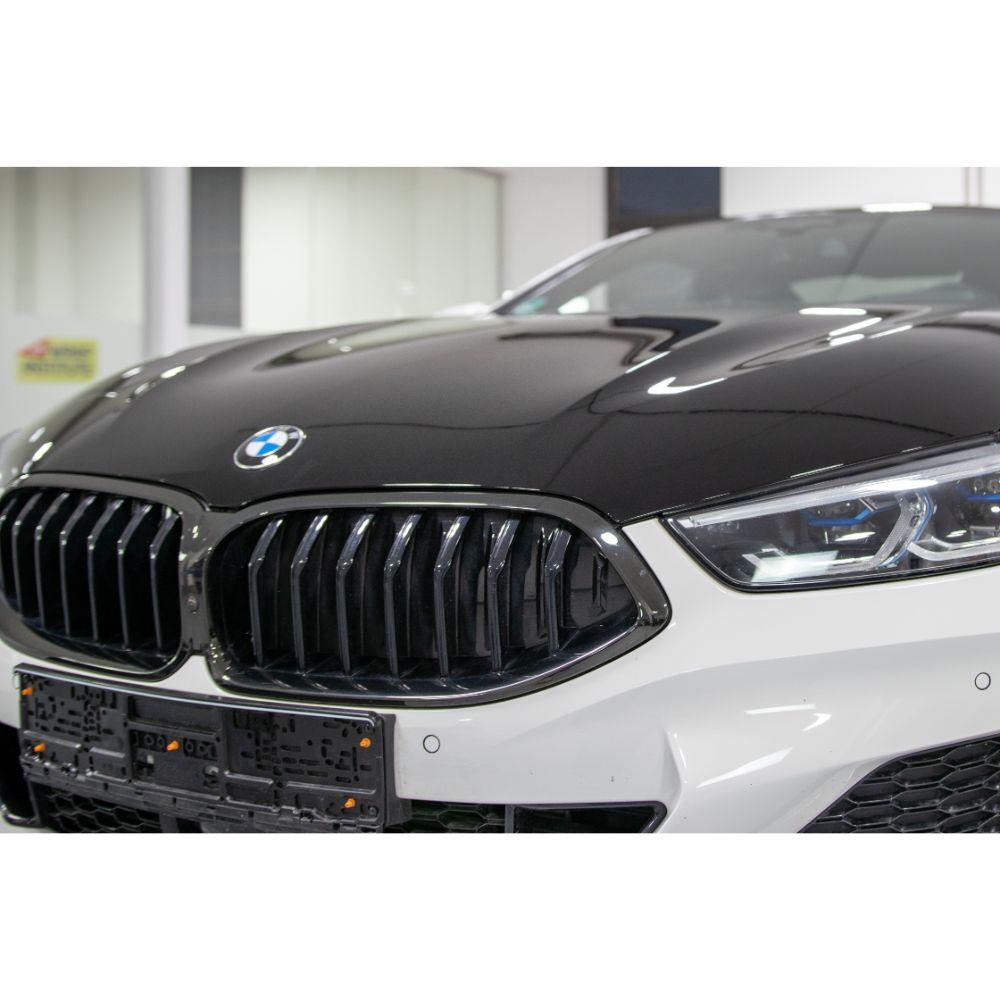

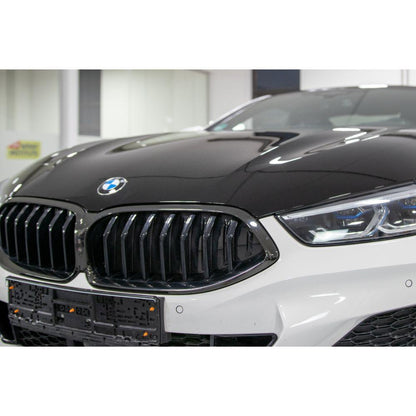

The first in the neo product line, noir is a distinctive black color film with noticeable color depth, richer black pigment and excellent high gloss finish. neo noir and the neo line of hybrid films are a unique polyurethane and adhesive technology that gives your vehicle an OEM paint like finish while protecting it from harmful daily elements.

Rich Black Pigment

Top coated polyurethane designed as an accent film with a paint like finish to enhance vehicle appearance and give paint protections.

Transform a roof and a hood with this 3D conformable hybrid film and protect factory paint from stone chips and road debris while adding artistic touches to any vehicle..

• Up to 5 year durability
• Stain resistance
• Self healing
• Available in 60" x 50' configuration.

NEW Hybrid Gloss Black Paint Protection Film

neo™ noir puts a spin on paint protection film and color change restyling, transforming vehicles with a protective high gloss black finish.

Features & Benefits:

• Superior high gloss level and paint like finish
• 3D conformability around curves and recesses
• Self-healing performance absorbs impact from scratches and debris
• Stain resistant
• Up to 5 year durability
• UV stability Typical Applications

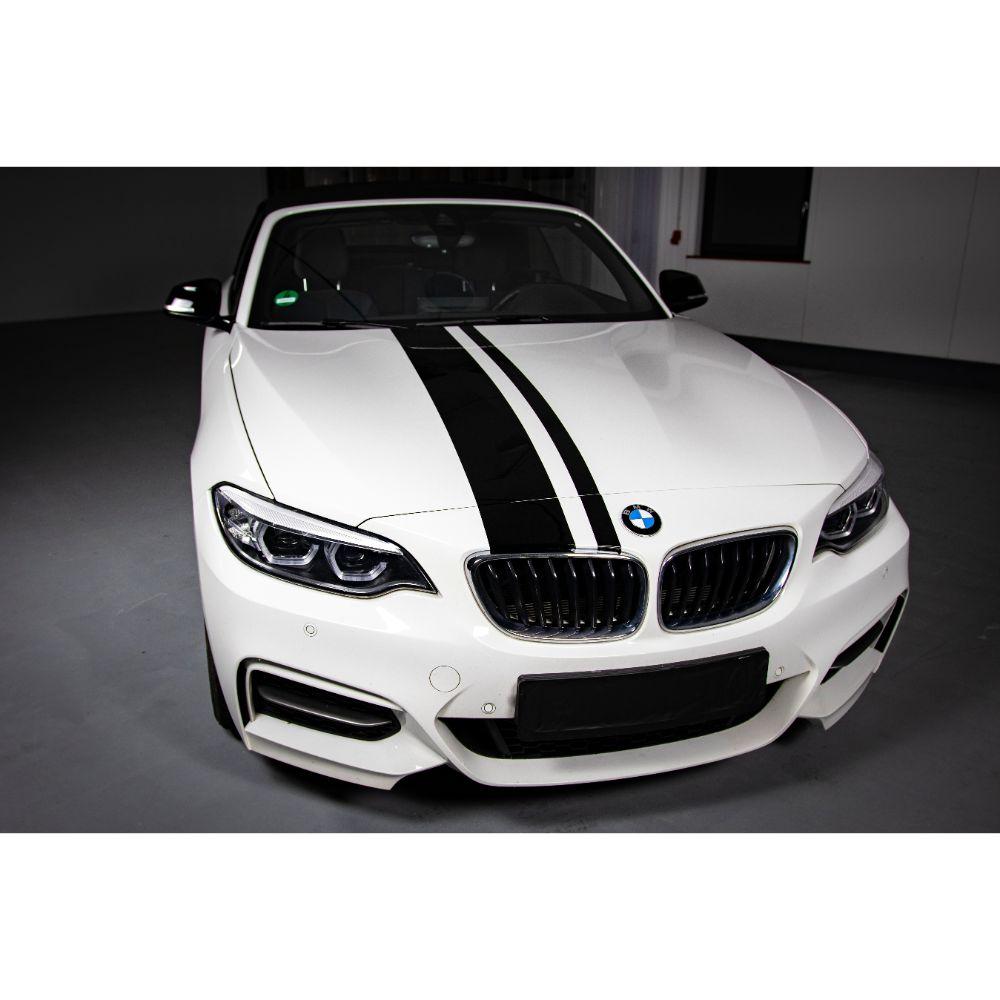

• Accents, Roofs, Hoods, Striping Product Configuration
• 60" x 50'

neo revolutionizes how to protect paint from stone chips and road debris while adding artistic touches to a vehicle. Create special accents or transform a roof and hood with our uniquely 3D conformable film that has an exceptionally smooth finish.



If you have any questions, or if you need assistance, please do not hesitate to contact our customer service department:

Toll Free: 1.866.258.6908

Paint Protection Film (PPF) Application Guide

1. Prepare the Surface

• Clean Thoroughly: Begin by washing the surface thoroughly. Use an automotive-grade soap to remove dirt, wax, and grease.
• Degrease: Once cleaned, some installers may apply an isopropyl alcohol solution to remove any remaining oils or residues. Let the surface dry completely for proper adhesion.
• Check for Imperfections: Inspect the area for any imperfections such as scratches, dust, or chips. Correct any issues as PPF will adhere best to smooth, clean surfaces.

2. Measure and Cut the Film

• Measure Carefully: Measure the area to ensure the film covers the entire surface. Add a little extra for trimming later, especially on larger sections.
• Pre-Cut the Film: For larger surfaces, consider pre-cut templates if available. This reduces the need for on-the-spot trimming and ensures a better fit.

3. Prepare Your Installation Solution

• Slip Solution: Mix a few drops of baby shampoo or PPF installation gel with water in a spray bottle. This solution helps you position the film on the surface without it sticking immediately.
• Tack Solution (Optional): For more adhesive power on tricky edges, mix a small amount of isopropyl alcohol with water in another spray bottle. The tack solution makes the film adhere more securely on curves or edges.

4. Apply the Film

• Spray the Surface: Spray the surface liberally with the slip solution. This layer of solution will allow you to slide the film into position.
• Peel and Position: Peel the backing off the film and lay it onto the wet surface. Adjust it to fit precisely, smoothing out large bubbles as you go.
• Activate the Adhesive with Tack Solution: For difficult edges or corners, use the tack solution. Spray a little solution on the area and press down on the film to ensure a firm grip.

5. Remove Air Bubbles and Smooth the Film

• Use a Squeegee: Starting from the center, use a squeegee to press out the solution and air bubbles, moving toward the edges. Wipe excess solution away as you go to avoid streaks or water spots.
• Work in Sections: Divide the area into smaller sections for better control. Apply steady pressure to ensure the film is smooth and bubble-free.

6. Trim Excess Film

• Careful Trimming: Use a sharp utility knife to trim the film along the edges. Be gentle to avoid cutting into the paint underneath.
• Edge Sealing: Press down on all edges firmly. For a cleaner finish, use edge seal tape on areas exposed to high stress, such as door edges or bumpers.

7. Final Inspection and Curing

• Inspect for Imperfections: If you see small air bubbles, gently lift the film in that section, spray a little slip solution, and squeegee it out.
• Allow to Set: Allow the film to fully cure for 24-48 hours before washing or exposing it to extreme conditions.

Handy Tools and Supplies for PPF Application

1. Essential Tools

• Squeegee: Essential for smoothing out the film and removing air bubbles. Opt for a soft squeegee to avoid scratching the film.
• Utility Knife: A sharp knife is essential for precise trimming of excess film. Use a light touch to avoid cutting into the paint beneath.
• Spray Bottles: Use separate bottles for slip solution and tack solution. Clearly label them to avoid confusion during application.

2. Cleaning and Preparation Supplies

• Isopropyl Alcohol (70% or Higher): Removes oils and residues that may prevent the film from adhering properly.
• Lint-Free Cloths or Microfiber Towels: For cleaning the surface without leaving fibers that could get trapped under the film.
• PPF Installation Gel (Optional): Provides extra slip during application, especially on large panels.

3. Tools for Removing Air Bubbles and Wrinkles

• Edge Seal Tape: Secures the film on high-stress edges like doors and wheel wells to prevent peeling or lifting.
• Air Release Tool: For tiny air bubbles that can’t be smoothed out, use an air release tool to prick the bubble and press it flat.

4. Application Helpers for Curved Surfaces

• Wrap Magnets: Help hold the film in place, making it easier to apply large sections without needing extra hands.
• Contouring Tape (Knifeless Tape): Allows precise cuts without a blade, useful for working around curves and edges.

5. Post-Installation Tools

• Finishing Spray or Detailer: Maintains the film’s glossy appearance and adds protection from dust and scratches. Choose a PPF-safe product.

Knifeless Tape: 3M Precision Line For PPF

What is Knifeless Tape?

• Knifeless tape includes a thin filament that allows for safe cutting of PPF without risking paint damage.
• Simply position it along the desired cut line, apply the film, and pull the filament to make a clean, precise cut.

3M™ Precision Line Knifeless Tape is an essential tool for achieving clean, precise cuts in paint protection film (PPF) installations without the risk of damaging the underlying surface.

This tape features an ultra-fine, ultra-sharp filament embedded within a semi-transparent green carrier. It's specifically designed to cut through challenging films.

Benefits of Using 3M™ Precision Line Knifeless Tape:

• Safe Cutting: Eliminates the need for blades, reducing the risk of nicks and cuts on the vehicle's surface.
• Precision: Allows for sharp, clean edges, even on complex curves and contours.
• Versatility: Suitable for single or multiple vinyl layer applications, making it ideal for intricate designs and seamless butt joints.

How to Use 3M™ Precision Line Knifeless Tape in PPF Installation:

1. Apply the Tape: Position the knifeless tape along the desired cut line on the vehicle's surface. Ensure it's firmly adhered and follows the contours accurately.
2. Install the PPF: Apply the paint protection film over the tape, smoothing it out as per standard installation procedures.
3. Cut the Film: Once the film is in place, pull the embedded filament through the film to achieve a clean cut along the tape's path.
4. Remove the Tape: Carefully peel away the knifeless tape, leaving a precisely cut edge on the PPF.

Incorporating 3M™ Precision Line Knifeless Tape into your PPF application process enhances precision and safety, ensuring a professional finish without the hazards associated with traditional cutting methods.
