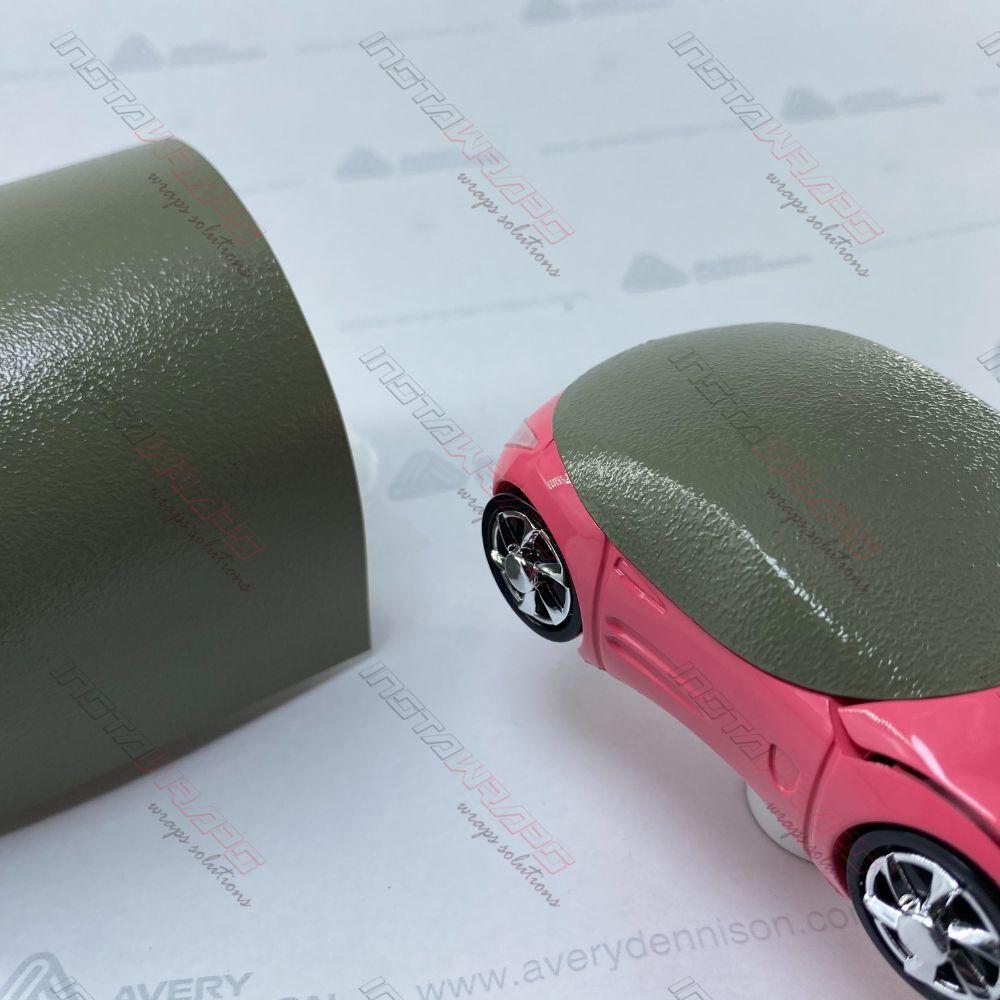

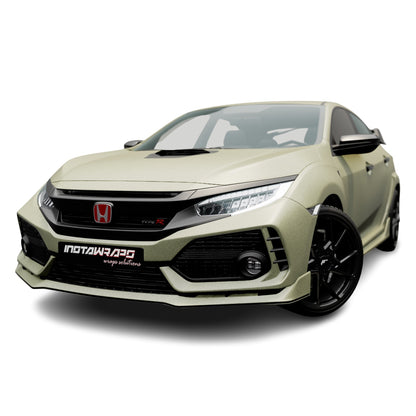

AVERY DENNISON SW900 SUPREME RUGGED COMBAT GREEN VINYL WRAP | 718-X

Adhesion begins with the condition of the panel. Do not apply film over wax, grease, dust, loose paint, rust, moisture or unstable repairs.

• Clean thoroughly. Wash the area using mild soap or an automotive-grade cleaner to remove dirt, road film and surface contaminants.
• Remove wax, polish and grease. Use an appropriate automotive degreaser where needed, following its directions carefully.
• Complete the final wipe. Many installers use isopropyl alcohol and clean, lint-free towels to remove remaining oils or residue.
• Let the panel dry completely. Pay special attention to seams, trim, handles and panel gaps where moisture can remain hidden.
• Inspect the substrate. Scratches, dents, chips, rust, rough bodywork or loose paint may show through the film or weaken adhesion.
• Repair imperfections first. Vinyl conforms best to smooth, sound surfaces. Complete necessary filling, sanding and curing before wrapping.

• Measure the complete coverage area. Include curves, returns, recessed areas and the material needed to finish each edge.
• Add a working allowance. Leave several extra inches on each side whenever practical so the film can be positioned without pulling.
• Pre-cut slightly larger than required. It is generally easier and safer to trim extra film than to recover from a piece cut too small.
• Plan film direction and seams. Confirm grain, pattern, metallic orientation or color-flop direction before cutting multiple panels.
• Keep the liner and film clean. Place cut material on a clean surface where dust and debris cannot contaminate the adhesive.

• Dry-fit the film first. Hold the sheet in position and confirm that there is enough material around every edge.
• Create an anchor point. Peel back only a small section of liner and attach one controlled area before exposing more adhesive.
• Work in small sections. Remove only as much backing paper as you can manage to reduce premature contact and contamination.
• Use a clean felt-edged squeegee. Apply firm, overlapping strokes from the centre toward an open edge to help move trapped air outward.
• Lift and reposition when needed. Do not force wrinkles flat. Release the affected area, remove tension and reapply it more gradually.
• Avoid unnecessary stretching. Use positioning, panel shape and controlled relief before relying on heat and tension.

• Use a heat gun on a controlled setting. Low to medium heat can make the film more pliable without exposing it to sudden, concentrated heat.
• Heat a broad area evenly. Keep the heat source moving and avoid creating a single overheated spot.
• Stretch gently. Conform the vinyl over curves using only the amount of tension required for the shape.
• Watch for visual distortion. Excessive stretching may alter color, gloss, texture, printed graphics or adhesive performance.
• Use relief and repositioning. For difficult compound curves, lifting and redistributing the film is usually safer than forcing one area.
• Let the film cool before final trimming. Confirm that the material remains stable after tension and heat are released.

• Use a sharp blade. A fresh, controlled blade requires less pressure and produces a cleaner edge than a dull one.
• Protect the surface underneath. Use very light pressure and avoid cutting directly into paint, plastic, glass, rubber or trim.
• Use knifeless tape whenever appropriate. It can create a clean cut without placing a blade directly against the vehicle surface.
• Leave enough material for the edge. Do not trim so closely that the film cannot wrap, tuck or finish securely around the panel boundary.
• Press edges firmly. Use the correct squeegee pressure and finishing tool to activate the adhesive along edges, corners and seams.
• Tuck only where appropriate. Do not force excess film into gaps where it may bunch, bridge or interfere with moving parts.

Post-heating helps stabilize areas that were stretched or formed under tension. The required temperature differs by product, finish, manufacturer and application.

• Identify critical areas. Focus on recesses, deep curves, stretched corners, body lines, seams, returns and finished edges.
• Use an infrared thermometer. Do not estimate post-heat temperature by touch alone.
• Follow the exact manufacturer requirement. Some wrap films may call for post-heating in the approximate range of 200–250°F / 93–121°C, but the current technical bulletin for the specific film must be followed.
• Heat evenly and continuously. Keep the heat gun moving to avoid scorching, gloss changes, texture damage or adhesive failure.
• Recheck after cooling. Confirm that edges remain down and stretched areas do not lift or shrink back.

• Inspect under strong lighting. Review the panel from several angles for bubbles, wrinkles, contamination, lifting edges or uneven tension.
• Correct air carefully. Small isolated bubbles may sometimes be released with a proper air-release tool or fine pin, then smoothed gently.
• Recheck all edges and seams. Confirm that adhesive contact is complete and that no section is bridging over a gap or contour.
• Clean the finished surface gently. Use a vinyl-safe product and a clean microfiber towel to remove fingerprints and installation residue.
• Allow the adhesive to build its bond. Avoid washing, heavy rain, harsh chemicals or severe conditions for approximately 24–48 hours when possible.
• Perform a follow-up inspection. Recheck critical edges and recesses after the film has rested, especially on complex installations.

• The surface was cleaned, degreased and completely dried before installation.
• No loose paint, rust, wax, trapped moisture or unstable repairs remain beneath the film.
• The material was applied without excessive stretching or visible distortion.
• All bubbles, wrinkles and areas of trapped contamination were addressed.
• Edges, corners, seams, recesses and returns are fully adhered.
• Critical stretched areas were post-heated to the manufacturer’s specified temperature.
• The completed wrap was inspected under strong lighting from multiple angles.
• The customer understands the recommended initial curing period and ongoing care requirements.

• Applying film over wax, grease, silicone, moisture, rust or failing paint.
• Cutting the film too small and trying to recover the missing coverage by stretching.
• Removing too much liner at once and allowing uncontrolled adhesive contact.
• Heating one small area too aggressively or overheating textured and specialty finishes.
• Using excessive tension through deep recesses, corners or compound curves.
• Cutting directly into the vehicle surface with heavy blade pressure.
• Skipping post-heating on stretched, recessed or high-tension areas.
• Washing or exposing the installation to harsh conditions immediately after completion.
